Nylon Gear Coupling

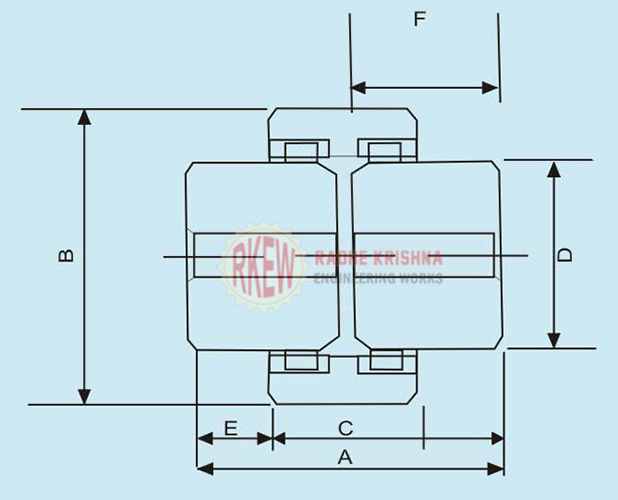

ORDERING GDE | M 19 | M 28 | M 38 | M 48 | M 65 |
---|---|---|---|---|---|
A | 54 | 81 | 84 | 110 | 144 |
B | 48 | 66 | 85 | 100 | 140 |
C | 37 | 46 | 48 | 53 | 72 |
D | 30 | 44 | 58 | 65 | 96 |
E | 8.5 | 17 | 18 | 29 | 39 |
F | 25 | 40 | 40 | 54 | 70 |
G Pilot bore dia | 10 | 13 | 15 | 17 | 20 |
COUPLING SIZE | Elec.Motor Frame Size | 300 RPM | 1500 RPM | 1000 RPM | 750 RPM | Max.Torque at 1500 RPM | MAX RPM | Weight Kg. | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KW | HP | KW | HP | KW | HP | ||||||||
19 | 80 90S 90L | 2.2 | 2 | 1.5 | 1 | 1.1 | 1 | .75 | 1 | 0.5 | 3.6 | 3000 | .35 |
28 | 100 L 112 M | 7.5 | 10 | 5.5 | 5 | 4.25 | 5 | 2.2 | 3 | 2.3 | 16.6 | 3000 | 1.05 |
38 | 132 S 132 M | 10 | 13 | 7.5 | 10 | 5.5 | 7.5 | 3 | 4.5 | 7 | 4.9 | 3000 | 1.80 |
48 | 160 ML 180 ML | 22 | 30 | 18.5 | 25 | 15 | 20 | 11 | 15 | 14.4 | 04 | 3000 | 3.20 |
65 | 200 L 250 M | 55 | 75 | 55 | 75 | 37 | 50 | 30 | 40 | 35.5 | 256 | 3000 | 8.90 |
